Части за двигател 4Е-FTE и още нещо

[poli]

Кодовете на частите са извадени от номер на шаси на Toyota Glanza V EP91:

Gasket kit engine overhaul 04111-11105 (ep91)
Gasket kit valve 04112-11092
Gasket cylinder head 11115-11071
Gasket cylinder cover 11213-11041
Seal for valve stem oil intake 90913-02086
Seal for valve stem oil Ehxaust 90913-02088 Ehxaust
Seal oil crankshaft front 90311-35040
Seal oil crankshaft rear 90311-75009
Plastic cover timing belt lower 11302-11062*****
Gasket intake manifold to head17177-11070
Gasket exhaust manifold to head 17173-11040
Gasket to exhaust manifold 17278 11031
Gasket compresor outlet to intercoocler 17277- 11020
Gasket turbo outlet to exhaust 172.79-11010
Gasket turbo oil inlet 15471-58010

Ventilation valve 12204-10040
Grommet for Ventilation valve 90480-18006

Timing Belt 13568-19106
Tensioner, timing belt 13505-11040
Pulley timing belt13503-11030

Valve intake 13711-11012
Valve exhaust 13715-11030

Bolt for cylinder head 90910-02100 X5 броя
Bolt for cylinder head 90910-02101 x5 броя

Ring Set piston 13011-11132 STD
Piston with pin 13101-11111-01 MARK1*
Piston with pin 13101-11111-02 MARK2*
Piston with pin 13101-11111-03 MARK3*

Bearing set conecting rod 13041-11030-01 MARK1**
Bearing set conecting rod 13041-11030-02 MARK2**
Bearing set conecting rod 13041-11030-03 MARK3**
Bearing set conecting rod 13204-11030 0.25 Undersize Bearings/Shells****

Bearing crankshaft 11701-10012-01 MARK1***
Bearing crankshaft 11701-10012-02 MARK2***
Bearing crankshaft 11701-10012-03 MARK3***
Bearing crankshaft 11701-10012-04 MARK4***
Bearing crankshaft 11701-10012-05 MARK5***
Bearing crankshaft 11704-10012 0.25 Undersize Bearings/Shells****

Oil pump 15100-11071
Oil seal ring for oil pump 90301-62006

Thermostat 90916-03046
Gasket thermostat 16325-63011
Water inlet to thermostat 16321-10011 (капачка термостат)
Water outlet housing 16333-11141 (bash термостат)\
Water pump 16100-19226
Radiator EP91 4EFTE 16400-11890
Support radiator upper 16533-11100 X2 (only for 4EFTE radiator)
Support radiator lower 90916-04004 X2

Distributor cap 19101-11080 със klips 96-99
Distributor rotor19102-74040 със klips 96-99
Distributor oil seal ring 90099-14088 със klips 96-99
Distributor cap ring dust seal 19127-74040 със klips 96-99

[poli]

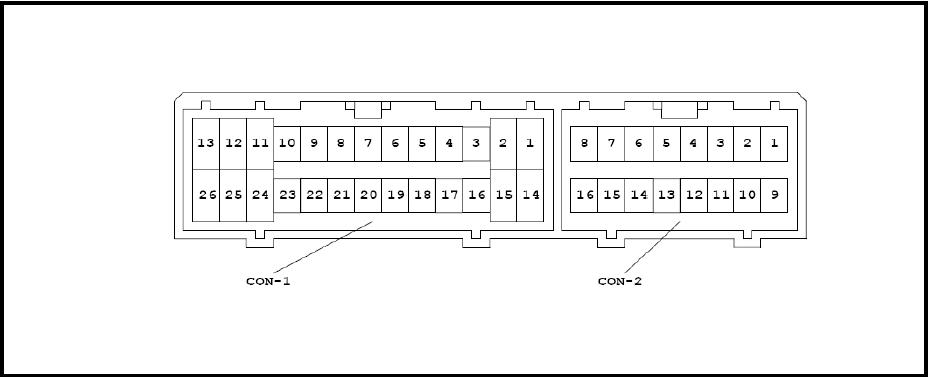

Wiring Diagram 4efte

Connector 1
1 IPV Vacuum Switching Valve
2 STA Engine Cranking Signal (Starter Switch)
3 IGF Ignition Feedback from the Ignitor-Coil
4 NE Part of the IIA (Intergrated Ignition Assembly) (RPM)
5 G1 Distributor
6 L ECT "L" Selection Signal. Shift Position Switch
7 2 ECT "2" Selection Signal. Shift Position Switch
8 SL ECT Solenoid
9 S2 ECT Solenoid
10 DISC Aux. Control Valve or Idle-Up System Vacuum Switching Valve
11 VSV1 Air Control Vacuum Switching Valve
12 #10 Injector Pulse 1 & 3
13 E02 Computer Ground
14 ~ ~
15 NSW Neutral Starter Switch
16 SP2 No. 2 Vehicle Speed Sensor ECT in Auto-Transmission
17 G- Distributor Crank Angle
18 G2 Distributor
19 DG Check Connector
20 BC Boost Control
21 S1 ECT Solenoid
22 IGT Ignition Timing
23 OD2 Cruise Control Computer
24 E1 Computer Ground
25 #20 Injector Pulse 2 & 4
26 E01 Computer Ground

Connector 2
1 STP Stop Light Switch
2 PIM Pressure Intake Manifold
3 THA Intake Air Temparature
4 THW Water Temparature Signal
5 P Shift Position Switch (Parking)
6 OX Oxygen Sensor (Lambda Sensor)
7 TE2 Check Connector
8 VF Check Connector Outputs
9 E2 Sensor Ground
10 VTA/PSW Throttle Position Sensor
11 VCC Throttle Position Sensor (pin 1)
12 IDL Throttle Position Sensor (Signals ECU throttle position is at idle)
13 M Shift Position Switch
14 KNK Knock Sensor
15 TE1 Check Connector
16 ~ ~

Connector 3
1 +B1 Switched Battery Power (12V)
2 BATT Switched Battery Power (+12V) (EFI Main Relay)
3 CCO Check Connector Outputs
4 FC Circuit Opening Relay (Fuel Cut)
5 AC2 12V To Aircon Computer
6 ACT A/C Cut Control System
7 +B Switched Battery Power (12V)
8 W Warning Light
9 EGW Catalytic Converter Temparature Warning Light (Combination Meter)
10 AC1 A/C Switch Signal System (12V to Aircon Computer)
11 SPD Speed Signal
12 ELS Electrical Load Signal System Taillight Relay

[poli]

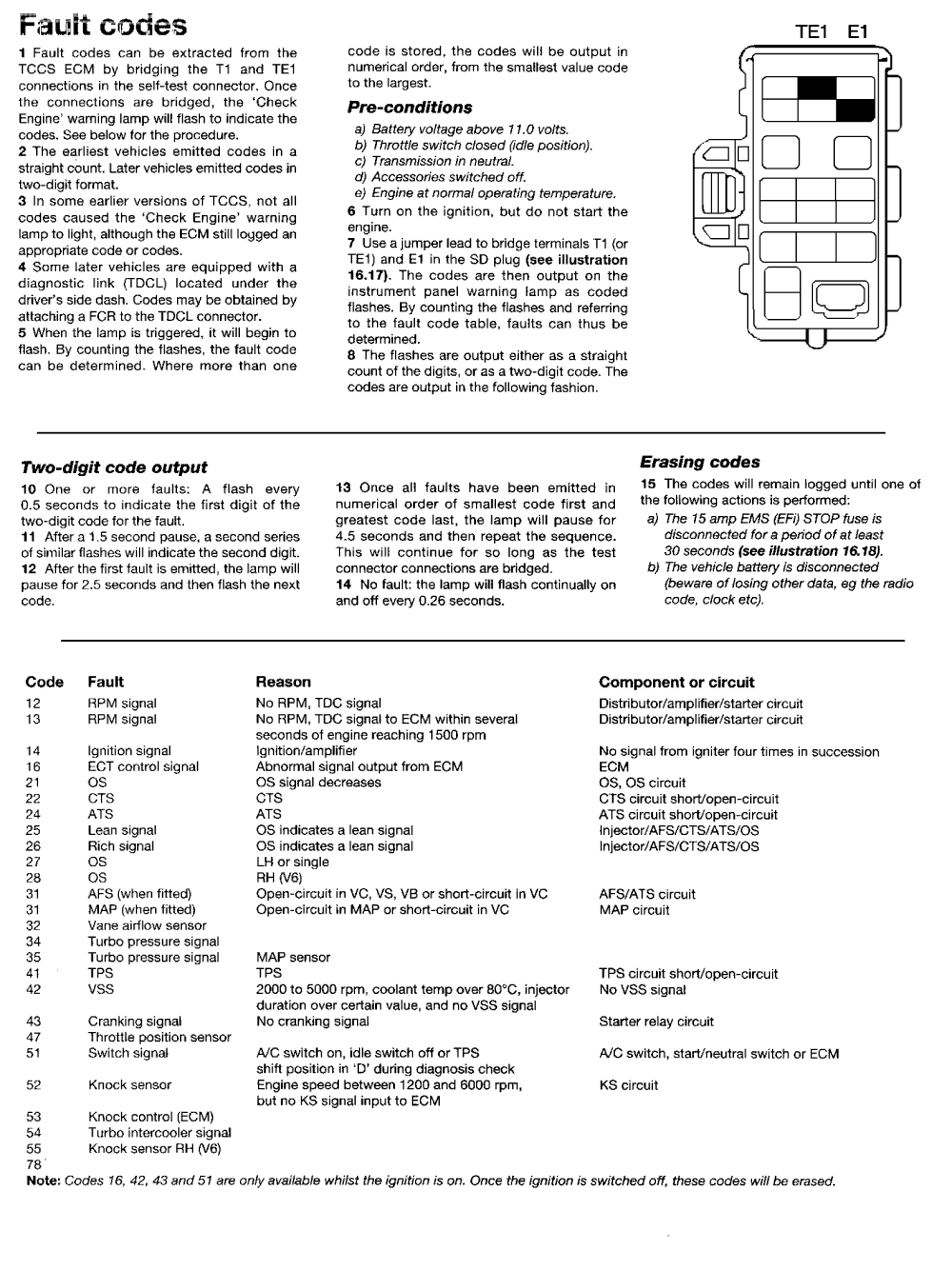

ECU fault codes

Кодове на грешки за централи на Toyota.

1 SYSTEM O.K
2 MAP SENSOR OR CIR
3 IGNITION SIGNAL FROM AMPLIFIER
4 CTS/ CIR
6 RPM SIG OR CIR
7 THROTTLE POT SENSOR OR COR
8 ATS/CIR
9 VSS/CIR
10 CRANKING SIG OR CIR
11 A/C SWITCH OR CIR

TOYOTA TCCS FAULT CODES ( 2 DIGITS)

12 RPM SIG OR CIR
13 " " " "
14 ING SIG FROM AMP
16 ECT CONTROL SIG OR CIR
21 OXY SENS/ CIR
22 CTS/CIR
24 ATS/CIR
25 OXY SENS LEAN SIG/ CIR
26 OXY SENS RICH SIG/CIR
27 OXY SENS/CIR
28 " " "
31 MAP SENS/ CIR OR AFS
32 VANE AIRFLOW SENS OR CIR
34 TURBO PRESSURE SIGN OR CIR
35 " " " " "
41 THROTTLE POT SENS OR CIR
42 VSS/CIR
43 CRANKING SIG OR CIR
47 THROTTLE POT SENS OR CIR
51 A/C SWITCH SIG OR CIR
52 KNOCK SENS OR CIR
53 KNOCK CONTROL OR CIR
54 TURBO INTERCOOLER SIG OR CIR
55 KNOCK SENS OR CIR

[poli]

Rebuild guide για TD04-13G

http://www.kickflop.net/wp/index.php?p=21

[poli]

Скоростни кутий и техните данни за Starlet GT/Glanza V

C52 - Starlet GT / Cynos β
Gear Ratio
1st 3.166
2nd 1.904
3rd 1.310
4th 0.969
5th 0.815
Final Gear Ratio 3.722

C56 - Glanza V
Gear Ratio
1st 3.166
2nd 1.904
3rd 1.392
4th 1.031
5th 0.815
Final Gear Ratio 3.722

C50 Glanza S
Gear Ratio
1st 3.545
2nd 1.904
3rd 1.310
4th 0.969
5th 0.815

EP91 N/A
Gear Ratio
1st 3,545
2nd 1,904
3rd 1,310
4th 1,031
5th 0,864
Final Gear Ratio 3,722

C59
Gear Ratio
1st 3.166
2nd 1.904
3rd 1.310
4th 0.969
5th 0.815

C150 Carina/Corolla/Paseo 4EFE/4AFE/5EFE
Gear Ratio
1st 3.545
2nd 1.904
3rd 1.310
4th 0.969
5th 0.815
Final Gear Ratio 4,058

C151 Tercel-Levin 5AFE
Gear Ratio
1st 3.545
2nd 1.904
3rd 1.233
4th 0.885
5th 0.725
Final Gear Ratio 3,772

final gear on G6 and 20v levin 4,529

[poli]

Информацията е от гръцкият форум.

[ugabuga]

super info! shte go pusna i na tercelskia forum

[poli]

Engine specs:
http://www.tercelreference.com/tercel_i ... _info.html

[poli]

Hype Rev Glanza V/Starlet GT-catalog:
http://www.squeak-design.co.uk/glanza/h ... er_rev.pdf
